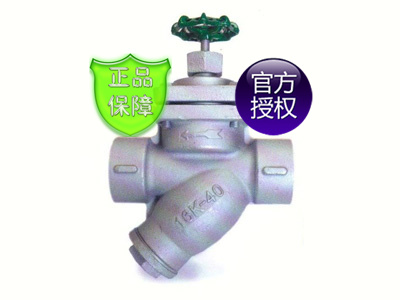

(ST-T6F) CAST IRON STEAM TRAP MANUAL TYPE FLANGED END* Please name the model No. (ST-T6F) when negotiation.
* End Flange Dimensions: Acc. to JIS 10K or ANSI 150 LBS.
* Max. Temperature: 220℃
* Test Pressure: Body 32 kgf/cm2 (Hydrostatic)
* Working Pressure: 0.3 kgf/cm2 – 16 kgf/cm2
Material:
Model: ST-T6F
Body IRON
SCREEN SS 304
GASKET ASBESTOS
NUT IRON
BODY CAP IRON
NUT IRON
DISC SS 420
DRAIN PLUG SS 304
WASHER ASBESTOS
DIMENSION mm
Size inch 1/2 3/4 1 1.1/4 1.1/2 2
mm 15 20 25 32 40 50
L 145 163 170 205 205 245
H 68 75 87 110 110 115
Weight (Kg) 3.0 4.0 5.5 8.0 8.5 10.5
