价格:￥9.00/台
品牌:美国Fishe
型号:R632A
起订:1台
供应:9999台
发货:3天内

购买咨询

功能

建议更换寿命为 20 年

入口/出口计量表旋塞，便于系统检查

更优异的调压功能

安装简单

优越的过压保护功能

耐腐蚀

防积水外形设计

持久耐用

规格

阀体尺寸和端部连接方式（入口 x 出口）

1/4 in x 1/2 in FNPT、FPOL x 1/2 in FNPT、1/4 in x 3/4 in FNPT、FPOL x 3/4 in FNPT

允许的*大入口压力

250 psig / 17.2 bar

出口压力范围

9 至 13 in w.c. / 22.4 至 32.4 mbar 弹簧范围

容量

*大 950,000 BTU/hr

泄放孔尺寸

一级： 1/4 NPT 扩口式
二级：3/4 NPT 筛网式

温度适用范围

-20° 至 160°F / -29° 至 71°C

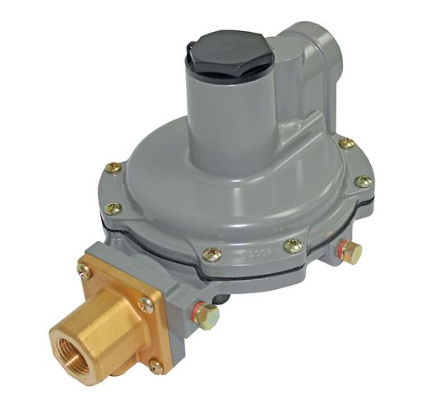

The Type R632A is an Underwriters Laboratories (UL) listed regulator designed for Two-Stage LP-Gas systems. The unit is designed to reduce the tank pressure through an integral two-stage system to 11 inches w.c. / 27.4 mbar. The first-stage screened drip-lip vent is oriented downward and the second-stage vent is oriented over the outlet as standard.

Features

20-Year Recommended Replacement Life

Inlet/Outlet Gauge Taps for easy system checks

Improved Regulation

Easy Installation

Superior Overpressure Protection

Corrosion-Resistant

Positive Draining Spring Case

Durability

Specifications

Body Sizes and End Connection Styles (inlet x outlet)

1/4 inch x 1/2 inch FNPT, FPOL x 1/2 inch FNPT, 1/4 inch x 3/4 inch FNPT, FPOL x 3/4 inch FNPT

Maximum Allowable Inlet Pressure

250 psig / 17,2 bar

Outlet Pressure Ranges

9 to 13 inches w.c. / 22.4 to 32.4 mbar spring range

Capacity

Up to 950,000 BTU/hr

Vent Size

1st Stage : 1/4 NPT Inverted Flare
2nd Stage : 3/4 NPT screened

Temperature Capabilities

-20° to 160°F / -29° to 71°C
