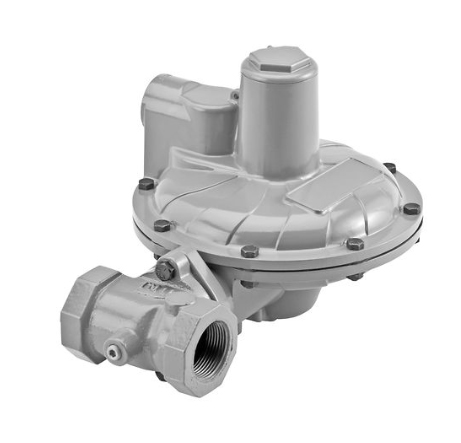

FISHER费希尔CS200减压阀功能特点：

提供多种 NPT 阀体尺寸和端部连接方式

易于安装和维护

仅使用标准工具即可调节压力和拆卸阀孔

固定系数精度（PFM 认证）

具有应用灵活性，包括内部泄压、非泄压和 Secondary Seat™ 保护

Secondary Seat 保护可在主阀瓣或阀孔座损坏或流路中的碎屑妨碍闭锁时提供辅助阀座和阀瓣表面

FISHER费希尔 CS200减压阀规格参数：

可选配置

独立调压器、非泄压、内部泄压、内部取压、Secondary Seat、带泄放的 Secondary Seat

阀体尺寸和端部连接方式

3/4、3/4 x 1、3/4 x 1-1/4、1、1 x 1-1/4、1-1/4 NPT

*大入口压力

175 psig / 12.1 bar

出口压力范围

3.5-in w.c. 至 2.0 psig / 9 mbar 至 0.14 bar 之间的八个范围

温度适用范围

-20 至 150°F / -29 至 66°C

其他技术数据

Fisher CS200 Series direct-operated, spring-loaded regulators provide pressure-reducing applications for commercial and light industrial installations. Options include numerous body sizes, outlet pressure settings, and orifice sizes. CS200 offers ease of maintenance and installation with its full 360-degrees of rotation of the actuator via the union ring connection between the body and casing.

Features

Wide Range of NPT Body Sizes and End Connections

Easy to Install and Maintain

only Standard Tools Required for Pressure Adjustment and Orifice Removal

Fixed Factor Accuracy (PFM Approved)

Application Flexibility including Internal Relief, Non-Relieving, and Secondary Seat邃｢ Protection

Secondary Seat Protection provides a secondary seating and disk surface in the event that damage to the primary disk or orifice seat or debris in the flow path inhibit lockup

Specifications

Available Configurations

Stand-Alone Regulator, Non-relief, Internal Relief, Internal Pressure Registration, Secondary Seat, Secondary Seat with Bleed

Body Sizes and End Connection Style

3/4 , 3/4 x 1, 3/4 x 1-1/4, 1, 1 x 1-1/4 , 1-1/4 NPT

Maximum Inlet Pressure

175 psig / 12.1 bar

Outlet Pressure Ranges

3.5-inches w.c. to 2.0 psig / 9 mbar to 0.14 bar in eight ranges

Temperature Capabilities
