品牌:自泵球阀ZP
材质:A105或304或316
特点:零泄露，可埋地安装
作用:全焊接阀体，阀杆加长
起订:1台
供应:1000台
发货:55天内
购买咨询
自贡自泵球阀WQ367N全焊接阀体对焊加长杆埋地球阀管焊板焊球阀在线服务：WEIXIN：180（8165）9672 或zipo2019; Q: 219(141)7589
咨询或购买前，请用户告知准确的口径、压力、介质、温度、连接方式、操作方式、主体材质等参数。
加长杆球阀 广泛应用于煤化工、石油化工、橡胶、造纸、制药等管道中作介质的分流合流或流向切换装置。
加长杆球阀可以直接埋于地下，不用建高大型阀门井，只需在地面上设置小型浅井，大大节省施工费用及工程时间。可根据管道的施工及设计要求，调整阀体的长短和阀杆的高度。球体的加工精度非常精密，操作轻便，无不良干涉。
加长杆球阀由全焊接的阀体和碳增强氟隆密封垫组成，可以在频繁操作，有杂质及化学物质的情况下长时间运行。研磨精细的不锈钢球体可以保证多年开闭自如，运行可靠。采用浮球结构，斜面弹性保证密封圈紧压在球体之上，即使在压力不稳定的情况下，阀门可以保证严密。阀杆的防泄漏结构使用两“O”型圈，使阀杆转动自如且密封严密。与同类行业的同种规格产品相比，阀体小，而且外型美观。而且能预防煤气事故的危险，全焊接球阀是非常安全的阀门。直埋式球阀传动时，操作者不需要进入地下，只需在地上进行传动操作即可，非常安全方便。
设计标准: ASME B16.34, API 6D, GB, GOST, DIN, BS等
压力温度等级标准: ASME B16.34/ GB/T12224
结构长度标准: API 6D, ANSI B16.10, GB 12221, GOST, DIN, BS/制造商标准/用户要求
连接标准: 对焊BW（ASME B16.25, ASME B31.8及其他国家标准）, 突面法兰RF（ASME B16.5，ASME B16.47，GB/JB/HG/GOST, DIN等.）, 环形槽法兰RTJ（ASME B16.5，ASME B16.47，GB/JB/HG/GOST, DIN等）, BW+PUP对焊加袖管（袖管管长度用户限定）.
检验标准：API 6D/API 598/GB/T 13927及其他国家相关标准
防火标准：API 607/API 6FA/BS 6755；防静电标准：API 608/BS 5351抗硫标准：NACE MR. 0175等； 泄露等级：软密封：ISO 5208 A级，金属密封：ISO 5208 C级以上，ANSI VI级； 阀体结构：锻钢阀体/铸钢阀体，全焊接连接阀体
阀座结构：自泄压/双活塞效应阀座/上游自泄压阀座下游双活塞效应阀座（可选）
常用材料：阀体：碳钢WCB/A105/LCB/LF2/不锈钢CF8/304CF8M316/CF3/304L/CF3M/316L/F51/2205/合金钢锻件或者铸件。球体：碳钢/不锈钢/合金钢锻件镀镍/镀铬/喷焊硬质合金；阀座支撑圈：碳钢/不锈钢/合金钢锻件镀镍/镀铬/喷焊硬质合金； 阀座：PTFE, RPTFE, VITON, NYLON, DEVLON, MOLON, PEEK/密封面喷焊, 碳化钨、司太立；阀杆：不锈钢/合金钢/INCONEL等
产品优势：1、阀杆可根据用户具体安装情况加长，以便于地面操作。
2、相对于同规格的常规球阀具有体积小、重量轻、外形美观、经久耐用等优点。
3、阀座密封面材料根据使用介质不同可选用PTFE、尼龙、合金钢、硬质合金等，能较大范围适应不同的温度、压力和腐蚀性要求。
4、采用全焊结构或螺栓连接阀体，与管道用对焊连接或法兰连接。前者没有管道和阀门法兰连接的泄漏，后者便于拆卸维修阀门。
燃气加长杆球阀用 途：城市燃气：燃气输出管道、主干线及各支线供应管道等。
集中供热：大型供热设备输出管线、主干线、支线。热交换机：管道及各回路启闭。钢铁厂：各种流体管道、废气择放管道、煤气和热力供应管道、燃料供应管道。各种工业设备：各种热处理管道、各种工业煤气和热力管道。
常用型号：WQ367F, WQ367H,WQ367Y, WQ967F, WQ967H, WQ967Y, WQ667F, WQ667N， WQ667H, WQ667Y
单位：自贡自泵球阀水泵有限公司

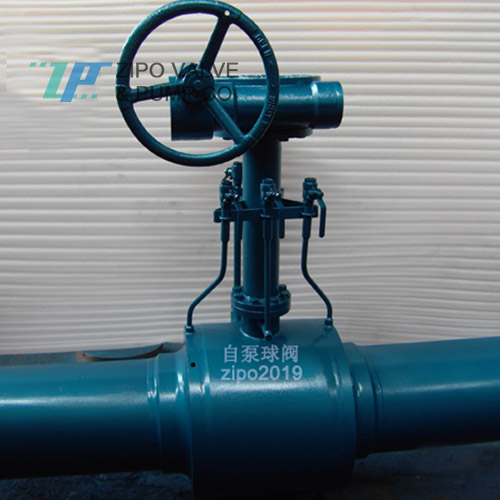

Underground fully welded ball valve with stem extension
Contact: Wechat: zipo2019; QQ: 2191417589; Mobile:
Please inform us of the accurate nominal size, pressure class, medium, temperature, material, actuator and other parameters, before consulting or purchasing the product. Thanks!
The ball valve with extended stem is widely used in the pipeline of coal chemical industry, petrochemical industry, rubber industry, paper industry, pharmaceutical industry, etc.
The extended stem ball valve can be directly buried under ground without building a high and large valve well, which greatly saves the construction cost and engineering time. The length of the valve body and the height of the valve stem can be adjusted according to the construction and design requirements of the pipeline. The machining accuracy of the ball is very precise, the operation is light, and there is no bad interference.
The extended stem ball valve is composed of a fully welded valve body and a carbon reinforced fluorocarbon gasket, which can operate for a long time under the condition of frequent operation, impurities and chemicals. The grinding fine stainless steel ball can ensure the opening and closing freely for many years, and the operation is reliable. The floating seat structure is adopted, and the inclined surface elasticity ensures that the sealing ring is tightly pressed on the ball, even in the case of unstable pressure, the valve can be tight sealed. The anti leakage structure of the valve stem uses two "O" rings to make the valve stem rotate freely and seal tightly. Compared with the same size of the bolted trunnion ball valve, the valve body is small and beautiful. The fully welded body can prevent the danger of gas accident, so is a very safe valve. When the operate the underground ball valve, the operator does not need to enter the underground, can operate the valve above the ground through the extended stem and actuator, which is very safe and convenient.
Product advantages:
1. The valve stem can be lengthened according to the user's specific installation conditions to facilitate ground operation.
2. Compared with the conventional ball valve of the same specification, it has the advantages of small volume, light weight, beautiful appearance, durability, etc.
3. The sealing surface materials of valve seat can be PTFE, Nylon, Alloy steel, hard alloy, etc. according to the different medium, different temperature, pressure and corrosive requirements.
4. The valve body is connected by welding fully, and the valve can be welded to the pipeline directly. So there is no possibility for external leakage.
Application:
City gas: gas output pipeline, main line and branch supply pipeline, etc.
Central heating: output pipeline, trunk line and branch line of large heating equipment. Heat exchanger: opening and closing of pipes and circuits. Iron and steel plant: all kinds of fluid pipes, waste gas selective discharge pipes, gas and heat supply pipes, fuel supply pipes. All kinds of industrial equipment: all kinds of heat treatment pipes, all kinds of industrial gas and thermal pipes.
Common Models: WQ367F, WQ367H,WQ367Y, WQ967F, WQ967H, WQ967Y, WQ667F, WQ667N， WQ667H, WQ667Y
Manufacturer: ZIPO VALVE & PUMP CO., LTD
