品牌:德国沃德WODE
口径:DN5
压力:-0.1Mpa
材质:304、316不锈钢
起订:1台
供应:100台
发货:3天内
进口电磁高真空挡板阀

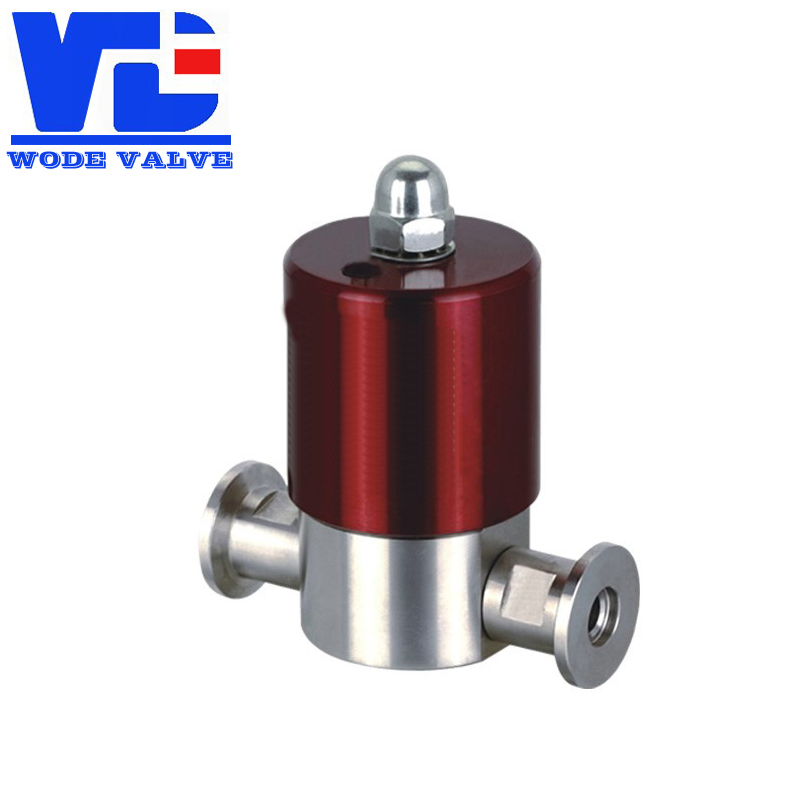

德国沃德WODE型的WGDC-5型-电磁高真空挡板阀
WGDC-5型电磁高真空挡板阀是连接在真空管路上,用来接通或截止真空系统中的气流,或作充气阀用。当通电时将P、A端管路接通、断电时切断P、A端管路,保持P端真空系统的真空度。适用介质为纯净空气和非腐蚀性气体。
WGDC-5 Electro High Vacuum Flapper Valve
WGDC-5 electro high vacuum flapper valve is mounted in vacuum pipeline to put through or cut off the airflow in vacuum system, or used as a charging vale. When power is connected, pipes at P and A will be put through, and when power is disconnected, pipes at P and A will be cut off, to keep the vacuum system at P vacuum. Applicable medium can be pure air and noncorrosive gases.
主要技术性能ain Technical Performance
|
公称通径:Nominal Diameter |
5mm |
|
适用范围:Applicability |
105~1.3×10-4Pa |
|
阀门漏率:Valve Leak Rate |
≤1.3×10-4Pa.L/S. |
|
适用温度:Applicable Temperature |
-30~+50℃ |
|
线围温升:Coil Temperature Rise |
≤65℃ |
|
电源电压:Mains Voltage |
220V/50Hz |
|
安装方向:Mounting Direction |
垂直或水平 |

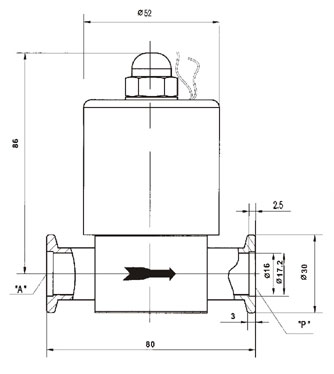

外形及连接尺寸(mm)(GB4982) Overall and Connection Dimensions(mm)

注:由于网页版面的原因本文中所有文字、数据、图片均只适用于参考,该进口真空蝶阀的性能参数、结构尺寸参数、价格等详情请致电沃德各代理商。德国沃德WODE授权一级代理商:北京永德宝阀门有限公司;
