产品概述:

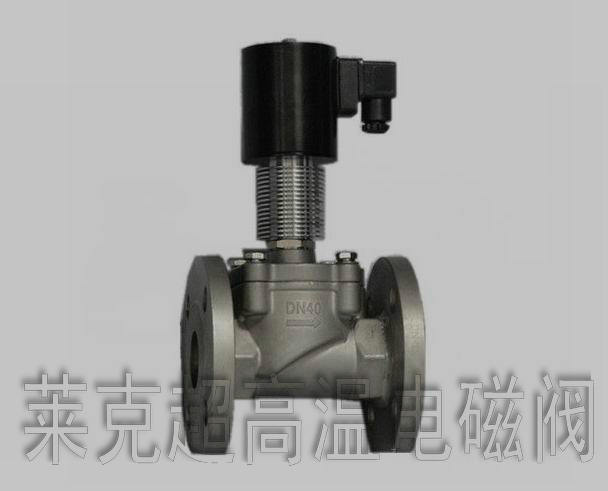

进口超高温电磁阀产品说明：
1、用于先导结构
2、配件聚四氟乙烯密封材料+金属，
3、*高温度700度导阀，散热器，
4、活塞（主阀）的结构设计形成的组合。
5、打开电流阀门打开，关断电源阀门关闭，它是执行的常用单位自动控制。
进口高温电磁阀主要技术参数：
电源电压：DC24V直流24瓦特/AC220V交流33VA保持功率（19.5W）
适应电压容差其他电压的10％
通径范围：DN1～DN200
控制方式：常闭式、常开式、自保持式
阀体材质：铸钢WCB、不锈钢304/316
适用介质：水、蒸气、油、高温流体等
温度范围：+150、+350、+450、+500、+650
防护性能：防水、防尘、防爆。根据工况选择。
接线方式：接线座式；引线式；插头式。
连接方式：内螺纹、法兰、焊接、外螺纹和特殊接口可定做加工或加转接头
不锈钢高温电磁阀广泛应用在军工、石化、工业窑炉、船舶重工、科研、实验室等场所
控制原理：
常闭式：当线圈通电时，电磁阀打开，介质流通；断电关阀
常开式：当线圈通电时，电磁阀关闭，介质截止；断电开阀
进口高温电磁阀的阀体安装
原文：高温电磁阀它广泛应用于船舶重工、测试设备、加热设备、液压设备等，工作温度在300℃以上的导热系统中。常闭：当线圈通电时，先导阀芯吸合，先导孔打开，阀上卸压，活塞靠下腔介质压力推动，电磁阀打开；当线圈断电时，先导阀芯靠弹簧复位，先导孔关闭，阀上腔由活塞节流孔增压和复位弹簧的推力，阀关闭。常开：当线圈通电时，先导孔关闭，阀上腔由活塞节流孔增压和复位弹簧的推力，电磁阀关闭。当线圈断电时，先导阀芯靠弹簧复位，先导孔打开，阀上腔卸压，活塞靠下腔介质压力推动，电磁阀打开。阀芯均为不锈活塞式，活塞环用特殊耐温、耐磨材料制作；活塞与金属阀腔不产生直接摩擦，阀体安装方向无限制；特制线圈，并采用散热的结构方式，因此不易烧毁；长时间停止动作重新启动，动作同样灵敏；*低启动压力0.2MPa。高温电磁阀的阀体安装。
，译文仅供参考。
译文：
High-temperature solenoid valve is widely used in shipbuilding industry, testing equipment, heating equipment, hydraulic equipment, in operating temperature above 300 ℃ heat conduction system. Normally closed: when energized coil, pilot valve core and off, open the guide hole, pressure relief valve, piston, powered by inferior vena medium pressure solenoid valve open; When coil power, pilot valve core by spring reset, the guide hole closed, valve cavity by a piston booster orifice and reset spring of thrust, valve closed. Normally open: pilot hole closed, when the coil current on the valve cavity by a piston booster orifice and reset spring of thrust, electromagnetic valve is closed. When the coil power, pilot valve core by spring reset, open the guide hole, cavity pressure relief valve, piston, powered by inferior vena medium pressure solenoid valve to open. Valve core are stainless piston, piston ring made of special heat-resistant, wear resistant material; Valve piston and metal cavity does not produce direct friction, valve installation direction unlimited; Special coil and the structure of the cooling way, therefore not burned; For a long time to stop action to restart, action also sensitive. The minimum start-up pressure 0.2 MPa.高温电磁阀的阀体安装。
