品牌:全立
型号:J61H
起订:1个
发货:7天内

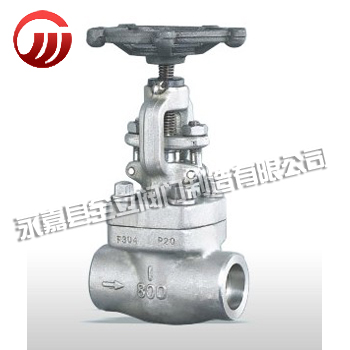

锻钢承插焊截止阀概述：
900-2500Lb锻钢承插焊截止阀主要尺寸及重量
|
规格 |
S |
L |
T |
W |
H (开) ≈ |
重量（） ≈ |
||||||
|
英制 |
公制 |
JNSI |
JIS |
900～1500 Lb |
2500 Lb |
A N S I |
ISO、BS |
J I S |
900～1500 Lb |
2500 Lb |
||
|
NPI牙型60 |
RC牙型55 |
PT牙型55 |
||||||||||
|
1/2 |
15 |
21.8 |
22.2 |
140 |
186 |
1/2 |
125 |
321 |
11.5 |
12.3 |
||
|
3/4 |
20 |
27.1 |
27.7 |
140 |
186 |
3/4 |
125 |
321 |
10.8 |
11.6 |
||
|
1 |
25 |
33.8 |
34.5 |
140 |
186 |
1 |
160 |
321 |
10.5 |
10.8 |
||
|
1 1/4 |
32 |
42.6 |
43.2 |
178 |
232 |
1 1/4 |
160 |
380 |
21.0 |
26.0 |
||
|
1 1/2 |
40 |
48.7 |
49.1 |
178 |
232 |
1 1/2 |
180 |
414 |
19.6 |
26.4 |
||
|
2 |
50 |
61.1 |
61.1 |
216 |
279 |
2 |
200 |
502 |
40.4 |
43.8 |
||
900-2500Lb锻钢承插焊截止阀标准材质明细表
|
序号 |
零件名称 |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
|
Type A105N |
Type A182 F22 |
Type A182 F304 |
Type A182 F316(L) |
||
|
1 |
阀体 |
A105N |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
阀瓣 |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
阀杆 |
A182 F6a |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
4 |
密封座 |
A105 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
5 |
密封环 |
316 |
A182 F304 |
A182 F304(L) |
F316(L) |
|
6 |
阀盖 |
A105N |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
7 |
圆柱销 |
A276 420 |
A182F304 |
||
|
8 |
垫圈 |
A105N |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
9 |
提升螺母 |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
10 |
填料 |
柔性石墨+304丝 |
316夹PTFE |
||
|
11 |
填料压套 |
A276 420 |
A182 F304 |
||
|
12 |
填料压板 |
A105 |
A182 F304 |
||
|
13 |
活节螺栓 |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
14 |
螺母 |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
15 |
阀杆螺母 |
A276 420 |
|||
|
16 |
手轮 |
A197 |
|||
|
17 |
铭牌 |
SS |
|||
|
适用介质 |
水、蒸汽、油品等 |
水、蒸汽、油品等 |
硝酸、醋酸等 |
||
|
适用温度 |
-29℃～425℃ 规格SLTWH (开) ≈重量（） ≈英制公制JNSIJIS900～1500 Lb2500 LbA N S IISO、BSJ I S900～1500 Lb2500 LbNPI牙型60RC牙型55PT牙型551/21521.822.21401861/212532111.512.33/42027.127.71401863/412532110.811.612533.834.5140186116032110.510.81 1/43242.643.21782321 1/416038021.026.01 1/24048.749.11782321 1/218041419.626.425061.161.1216279220050240.443.8 |
-29 |
|||
