价格:￥9.00/台
品牌:美国Fisher
型号:HSRL
起订:1台
供应:999台
发货:3天内

购买咨询

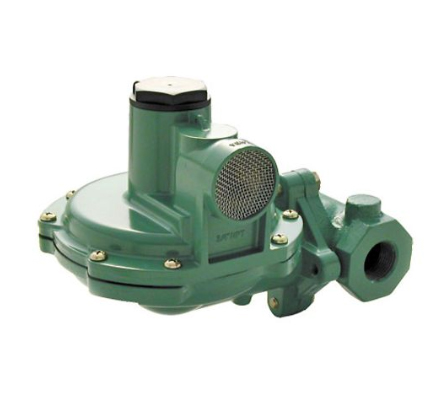

费希尔HSRL调压阀功能特点：

建议更换寿命为 20 年

更优异的调压功能

过压保护

耐腐蚀

正向排水

UL 认证

费希尔HSRL调压阀规格参数：

阀体尺寸和端部连接方式（入口 x 出口）

3/4 x 3/4、3/4 x 1 或 1 x 1-in 螺纹 NPT 球形阀体

*大入口压力

*大入口压力：10 psig / 0.69 bar
紧急入口压力：30 psig / 2.1 bar

出口压力范围

9 至 13 in w.c. / 22.4 至 32.4 mbar 弹簧范围

流通能力

*大 2.6 MBTU/hr

放泄孔尺寸

3/4 NPT 筛网式

取压方式

内取压

温度适用范围

-20° 至 160°F / -29° 至 71°C

其他技术数据

HSRL Series second-stage regulator is an Underwriters Laboratories (UL) listed regulator designed for two-stage LP-Gas systems. With a capacity of up to 2 600 000 BTU/hr / 29,27 SCMH, the HSRL Series is ideal for use in commercial applications. The unit is designed to reduce the outlet pressure from a first-stage regulator (usually 10 psig to 11-inches w.c. / 0,69 bar to 27 mbar). Screened drip-lip vents oriented over the inlet are standard.

Features

20-Year Recommended Replacement Life

Improved Regulation

Overpressure Protection

Corrosion Resistance

Positive Drainage

UL Listed

Specifications

Body Sizes and End Connection Styles (inlet x outlet)

3/4 x 3/4, 3/4 x 1, or 1 x 1-inch threaded NPT Globe Body

Maximum Inlet Pressures

Maximum Inlet Pressure: 10 psig / 0,69 bar
Emergency Inlet Pressure: 30 psig / 2,1 bar

Outlet Pressure Ranges

9 to 13 inches w.c. / 22.4 to 32.4 mbar spring range

Capacity

Up to 2.6 MBTU/hr

Vent Size

3/4 NPT screened

Pressure Registration

Internal

Temperature Capabilities

-20° to 160°F / -29° to 71°C
