价格:￥9.00/台
品牌:美国FISHER费希尔

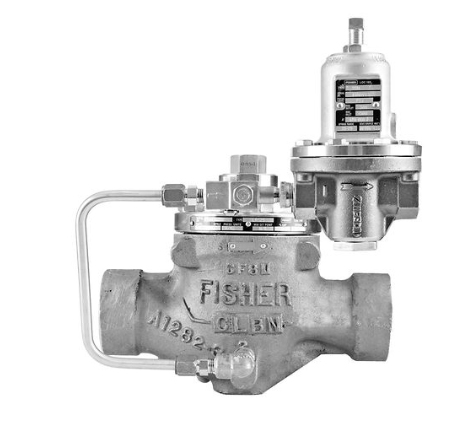

型号:LR125
起订:1台
供应:999台
发货:3天内

购买咨询

费希尔 LR125调压阀功能特点：

防碎屑

全面实验室测试

阀位行程指示器

易于维护的指挥器

费希尔 LR125调压阀规格：

温度适用范围

17E68 丁腈橡胶 (NBR)：-20 至 150°F / -29 至 66°C | 17E97 丁腈橡胶 (NBR)：0 至 150°F / -18 至 66°C | 17E88 氟橡胶 (FKM)：0 至 250°F / -18 至 121°C

阀体尺寸

NPS 1 / 2 / 3 / 4 | DN 25 / 50 / 80 / 100

端部连接

NPT / SWE / CL150RF / CL300RF / CL600RF / PN 16/25/40

*大入口压力

600 PSIG / 20.7 bar | 或阀体额定压力值，以较低者为准

*大出口压力

400 PSIG / 27.6 bar | 或阀体额定压力值，以较低者为准

弹簧范围

15 至 400 PSIG / 1.0 至 27.6 bar

如需其他技术信息

Type LR125 pilot-operated, pressure reducing regulator is designed for liquid applications. The Type LR125 provides smooth operation, tight shutoff, and long life, even in dirty service. Its internally actuated metal plug eliminates disadvantages associated with boot-style regulators, and the specially engineered flow path deflects debris, protecting the seat from damage and erosion. An internal inlet strainer prevents large particles from entering the main valve.

Features

Debris Protection

Thorough Laboratory Testing

In-Service Travel Indicator

Easily Maintained Pilot

Specifications

Temperature Capabilities

17E68 Nitrile (NBR):?-20 to 150°F / -29 to 66°C | 17E97 Nitrile (NBR): 0 to 150°F / -18 to 66°C | 17E88 Fluorocarbon (FKM): 0 to 250°F / -18 to 121°C

Body Sizes

NPS 1 / 2 / 3 / 4 | DN 25 / 50 / 80 / 100

End Connections

NPT / SWE / CL150RF / CL300RF / CL600RF / PN 16/25/40

Maximum Inlet Pressure

600 PSIG / 20.7 bar | Or body rating limit, whichever is lower

Maximum Outlet Pressure

400 PSIG / 27.6 bar | Or body rating limit, whichever is lower

Spring Ranges

15 to 400 PSIG / 1.0 to 27.6 bar
