自贡自泵球阀锻钢Q11F-3000PSI内螺纹丝扣浮动球阀

在线服务：WEIXIN：180（8165）9672 或zipo2019; Q: 219(141)7589
咨询或购买前，请用户告知准确的口径、压力、介质、温度、连接方式、操作方式、主体材质等参数。

Q11F 型 PN16~PN420内螺纹球阀适用于 PN1.0～4.0MPa，工作温度 -29～180℃（密封圈为增强聚四氟乙烯）或 -29～300℃（密封圈为对位聚苯）的各种管路上，用于截断或接通管路中的介质，选用不同的材质,可分别适用于水、蒸汽、油品、酸性等多种介质。
内螺纹连接球阀及对焊连接球阀分为整体式(一片式)、两段式及三段式。阀体铸造采用先进工艺，结构合理、造型美观。阀座采用弹性密封结构，密封可靠，启闭轻松。 阀杆采用有倒密封的下装式结构，阀腔异常升压时，阀杆不会被冲出。二片式、三片式球阀连接形式另有对焊(BW)承插焊(SW),并均可带国际标准ISO支架平台和锁定装置。可设置90°开关定位机构，根据需要加锁以防止误操作，驱动方式: 手动、电动、气动。
口径范围NPS1/4”~NPS4’ 压力范围：PN16（CLASS150LB）~PN420(CLASS 1500LB) 1000PSI, 2000PSI,30000PSI, ,6000PSI, 1000WOG, 2000WOG, 3000WOG, 6000WOG
常用型号：Q11F-16C,  Q11F-40C，Q11F-64C，Q11F-100C，Q11F-150C，
Q11F-250C，Q11F-420C，Q11F-16P,  Q11F-40P，Q11F-64P，Q11F-100P，Q11F-150P，Q11F-250P，Q11F-420P., Q11F-1000PSI, Q11FI-2000PSI, Q11F-3000PSI, Q11F-6000PSI
单位：自贡自泵球阀水泵有限公司

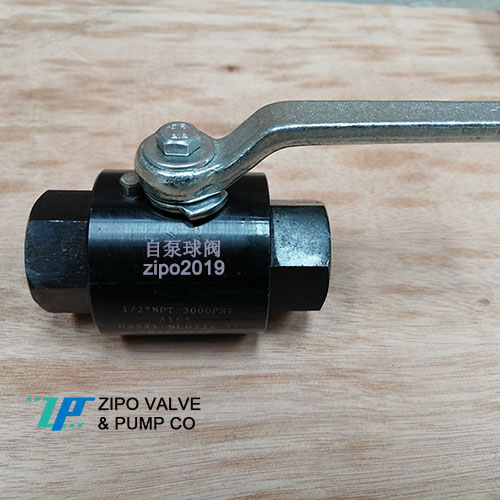

Forged steel Q11F-3000psi NPT thread floating ball valve

Please inform us of the accurate nominal size, pressure class, medium, temperature, material, actuator and other parameters, before consulting or purchasing the product. Thanks!

NPT thread ball valve is applicable to various pipelines with PN1.0 ~ 4.0Mpa, operating temperature of - 29 ~ 180 ℃ (the sealing ring is reinforced polytetrafluoroethylene) or - 29 ~ 300 ℃ (the sealing ring is counterpoint polystyrene), used to cut off or connect the medium in the pipeline, and different materials are selected, which can be respectively applied to water, steam, oil, acid and other media.
NPT thread connection ball valve and BW connection ball valve are divided into integral type (one piece), two-piece type and three-piece type. The valve body is casted with reasonable structure and beautiful shape. The valve seat adopts elastic sealing structure, reliable sealing and easy opening and closing. The valve stem adopts an anti blow out structure with back seal, and the valve stem will not be flushed out when the valve cavity is abnormally pressurized.
Two piece and three piece body ball valves can be connected to the pipeline by butting welding (BW) or Socket Welding (SW), and the stem can be equipped with ISO mounting pad and locking device. 90 ° switch positioning mechanism can be set and locked as required to prevent from wrong operation.
Actuator mode: manual, electric and pneumatic.
Size range NPS1/4 "~NPS4" pressure range: PN16 (CLASS150LB) ~PN420 (CLASS 1500LB) 1000PSI, 2000PSI, 30000PSI, 6000PSI, 1000WOG, 2000WOG, 3000WOG, 6000WOG
Common models: Q11f-16C, Q11f-40C, Q11f-64C, Q11F-100C, Q11F-150C,
Q11F-250C，Q11F-420C，Q11F-16P, Q11F-40P，Q11F-64P，Q11F-100P，Q11F-150P，Q11F-250P，Q11F-420P., Q11F-1000PSI, Q11FI-2000PSI, Q11F-3000PSI, Q11F-6000PSI
Manufacturer: ZIPO VALVE & PUMP CO., LTD
