品牌:威斯特品牌
型号: CF11
规格:齐全
起订:1台
发货:3天内

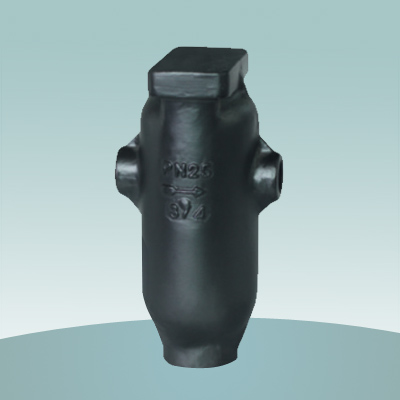

产品介绍：CF11型汽水分离器，是利用蒸汽流向急剧转换方式、将蒸汽和蒸汽中含有的悬浮状水滴分离开，提高了产品质量和生产效率。
1.为蒸汽设备提供高干度蒸汽，送往用汽设备，提高设备的热效率，降低管道内的冲击力。
2.并防止水击，而分离出来的凝结水，由分离器下部的疏水阀排除。
3.UFS2型汽水分离器也适用于从压缩空气中分离凝结水。
Introduction：CF11 gas and water separator make the steam and water apart through the abrupt change of the direction in which the steam flows,so as to improve the quality and efficiency of its operation.
1.Improve the dry steam of steam equipment to raise the heating efficiency of the equipment and reduce the impact to the pipelines.
2.Prevent water beating;the condensed water separated will be dischaeged from the trap below the separator;
3.Ufs2 gas and water separator os also appropriate for separating the condensed water from the condensed air.
技术参数表 Technological parameter date
Model 产品型号 |
Nominal diameter |
Connection |
Pressure rating（MPa） |
Max allowable（℃） |
Extermal dimensions（mm）外形尺寸 |
|||
|
L |
H1 |
H2 |
D |
|||||
|
CF11 |
15~20 |
Thread螺纹 |
0.01~2.5 |
350 |
130 |
115 |
156 |
螺纹 |
|
25 |
150 |
155 |
222 |
|||||
|
CF41 |
20~32 |
Flange法兰 |
0.01~2.5 |
350 |
320 |
65 |
100 |
螺纹 |
|
CF41 |
40~50 |
Flange法兰 |
0.01~2.5 |
350 |
460 |
80 |
140 |
螺纹 |
|
65 |
490 |
90 |
180 |
|||||
|
CF41 |
80~100 |
Flange法兰 |
0.01~2.5 |
350 |
510 |
110 |
190 |
螺纹 |
|
CF41 |
125~150 |
Flange法兰 |
0.01~2.5 |
350 |
590 |
145 |
200 |
螺纹 |
|
UFS1 |
50 |
Flange法兰 |
0.01~2.5 |
350 |
270 |
80 |
260 |
DN25法兰 |
|
65 |
310 |
90 |
275 |
|||||
|
UFS2 |
80 |
Flange法兰 |
0.01~2.5 |
350 |
400 |
98 |
330 |
DN25法兰 |
|
100 |
108 |
108 |
||||||
|
UFS3 |
150 |
Flange法兰 |
0.01~2.5 |
350 |
450 |
140 |
410 |
DN25法兰 |
|
200 |
168 |
435 |
||||||
|
UFS4 |
250 |
Flange法兰 |
0.01~2.5 |
350 |
550 |
203 |
517 |
DN25法兰 |
|
300 |
230 |
517 |
||||||
