品牌:七方高中压
型号:H44H
规格:20-300
起订:1台
供应:100台
发货:3天内

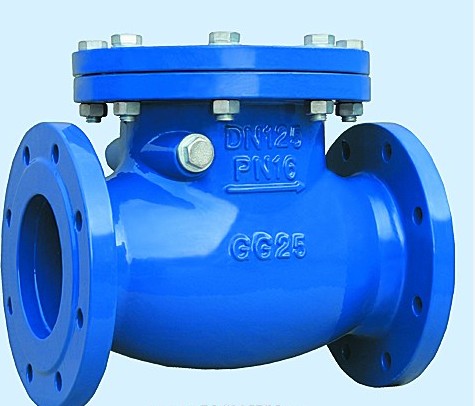

旋启式止回阀适用介质：水、油、气及某些腐蚀性液体防止介质倒流。
﹥ 公称通经：DN10-DN80
﹥ 压力范围：1.0MPa-2.5MPa
﹥ 介质温度：-20℃-350℃
﹥ 阀体材料：WCB、304、316
性能规范
|
试验压力 |
公称压力（ MPa ） |
||||||
|
1. 0 |
1.6 |
2.5 |
4.0 |
6.4 |
|||
|
壳体试验 |
1. 5 |
2.4 |
3.75 |
6.0 |
9.6 |
||
|
密封试验 |
1. 1 |
1.76 |
2.75 |
4.4 |
7.1 |
||
|
阀体材料 |
WCB(C) |
CF8(P),CF 8M (R) |
WC6,WC9 |
||||
|
工作温度 |
≤ 425 |
≤ 100 |
≤ 100 |
≤ 550 |
≤ 550 |
||
|
适用介质 |
水、蒸汽、油品 |
硝酸类 |
醋酸类 |
水、蒸汽 |
水、蒸汽 |
||
3 尺寸重量
|
称通径 DN |
主要外形尺寸和连接尺寸 |
||||||
|
L |
D |
D1 |
D2 |
b |
Z-d |
H |
|
|
H44H-16C H44W-16C H44W-16P H44W-16R H44W-16I |
|||||||
|
25 |
160 |
115 |
85 |
65 |
16 |
4-14 |
100 |
|
32 |
180 |
135 |
100 |
78 |
16 |
4-18 |
105 |
|
40 |
200 |
145 |
100 |
85 |
16 |
4-18 |
115 |
|
50 |
230 |
160 |
125 |
100 |
16 |
4-18 |
135 |
|
65 |
290 |
180 |
145 |
120 |
18 |
4-18 |
142 |
|
80 |
310 |
195 |
160 |
135 |
20 |
8-18 |
165 |
|
100 |
350 |
215 |
180 |
155 |
20 |
8-18 |
180 |
|
125 |
400 |
245 |
210 |
185 |
22 |
8-18 |
210 |
|
150 |
480 |
280 |
240 |
210 |
24 |
8-23 |
233 |
|
200 |
500 |
335 |
295 |
265 |
26 |
12-23 |
304 |
|
250 |
550 |
405 |
355 |
320 |
30 |
12-25 |
348 |
|
300 |
650 |
460 |
410 |
375 |
30 |
12-25 |
390 |
|
350 |
750 |
520 |
470 |
435 |
34 |
16-25 |
430 |
|
400 |
850 |
580 |
525 |
485 |
36 |
16-30 |
468 |
|
H44H-25 H44W-25 H44W-25P H44W-25R H44W-25I |
|||||||
|
25 |
160 |
115 |
85 |
65 |
16 |
4-14 |
100 |
|
32 |
180 |
135 |
100 |
78 |
16 |
4-18 |
105 |
|
40 |
200 |
145 |
110 |
85 |
16 |
4-18 |
115 |
|
50 |
230 |
160 |
125 |
100 |
20 |
4-18 |
160 |
|
65 |
290 |
180 |
145 |
120 |
22 |
8-18 |
175 |
|
80 |
310 |
195 |
160 |
135 |
22 |
8-18 |
185 |
|
100 |
350 |
230 |
190 |
160 |
24 |
8-23 |
220 |
|
125 |
400 |
270 |
220 |
188 |
28 |
8-25 |
248 |
|
150 |
480 |
300 |
250 |
218 |
30 |
8-25 |
276 |
|
200 |
550 |
360 |
310 |
278 |
34 |
12-25 |
350 |
|
250 |
650 |
425 |
370 |
332 |
36 |
12-30 |
410 |
|
300 |
750 |
485 |
430 |
390 |
40 |
16-30 |
430 |
|
350 |
850 |
550 |
490 |
448 |
44 |
16-34 |
518 |
|
400 |
950 |
610 |
550 |
505 |
48 |
16-34 |
560 |
|
公称通径DN/mm |
尺寸/mm(H44H-64 H44W-64 H44W-64P H44W-64R H44W-64I) |
重量/kg |
||||||||
|
L |
D |
D1 |
D2 |
D6 |
b |
Z-∮d |
D3 |
H |
||
|
DN50 |
300 |
175 |
135 |
105 |
88 |
26 |
4-∮23 |
200 |
177 |
27 |
|
DN65 |
340 |
200 |
160 |
130 |
110 |
28 |
8-∮23 |
225 |
197 |
37 |
|
DN80 |
380 |
210 |
170 |
140 |
121 |
30 |
8-∮23 |
250 |
212 |
53 |
|
DN100 |
430 |
250 |
200 |
168 |
150 |
32 |
8-∮25 |
315 |
248 |
90 |
|
DN125 |
500 |
295 |
240 |
202 |
176 |
36 |
8-∮30 |
365 |
298 |
135 |
|
DN150 |
550 |
340 |
280 |
240 |
204 |
38 |
8-∮34 |
410 |
330 |
187 |
|
DN200 |
650 |
405 |
345 |
300 |
260 |
44 |
12-∮34 |
480 |
385 |
212 |
|
DN250 |
775 |
470 |
400 |
352 |
313 |
48 |
12-∮41 |
565 |
445 |
403 |
